Rayfin Micro 500m ROV Camera
✓ In stock

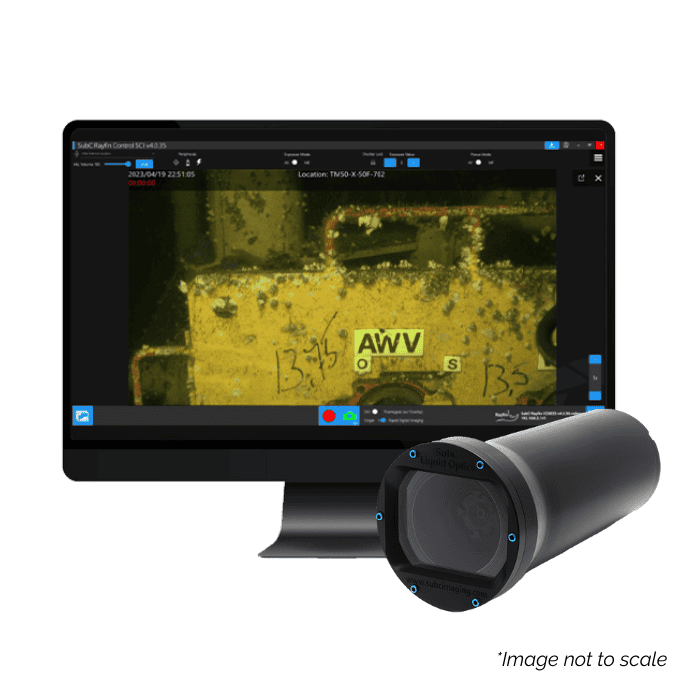

Experience unmatched performance in a compact, lightweight subsea camera with the Rayfin Micro. Designed for observation class ROVs, expect reliable and exceptional image quality for precise inspections and surveys. With real-time transfer of digital stills with strobe sync and live Ethernet HD video topside, overlay, data logging, and image enhancement. The Rayfin Micro has the versatility to get the required data you need to complete your project.
Key features:
-

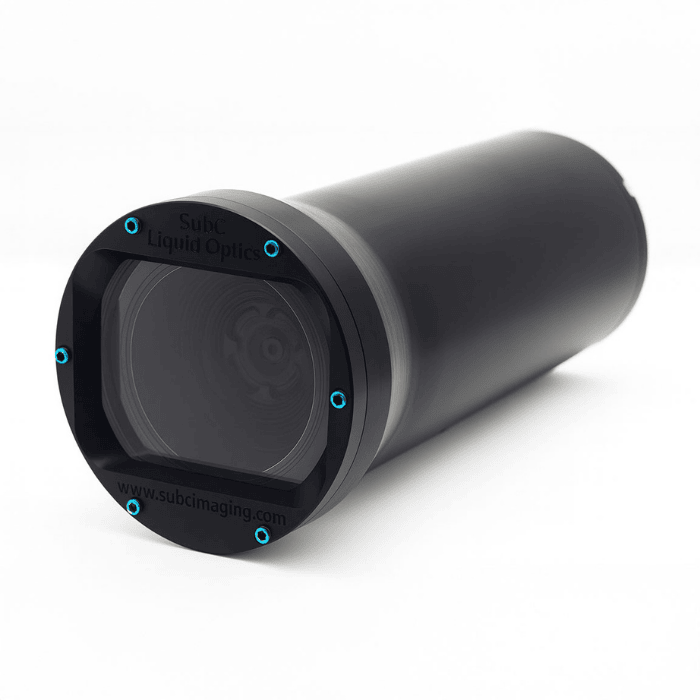

Weighing less than 500g in water, the small form factor allows easy integration into your system, without sacrificing the quality you come to expect from a SubC Rayfin camera.
-
Rapid Digital Imaging (RDI) feature enables live images to be immediately stored topside in your standard file structure. Capture the sharpest images thanks to a scratch-resistant sapphire lens paired with water-corrected LiquidOpticsTM.
-
Real-time, live HD with data annotation into video overlays. The Rayfin’s focus range is optimized to eliminate foreground debris. Plus, live video image enhancement for clear visuals when visibility is compromised.
-
No downloading required. Access your images and video immediately. Log crucial survey data with date and time stamps. GPS data embedded in EXIF enables geo-referenced images.

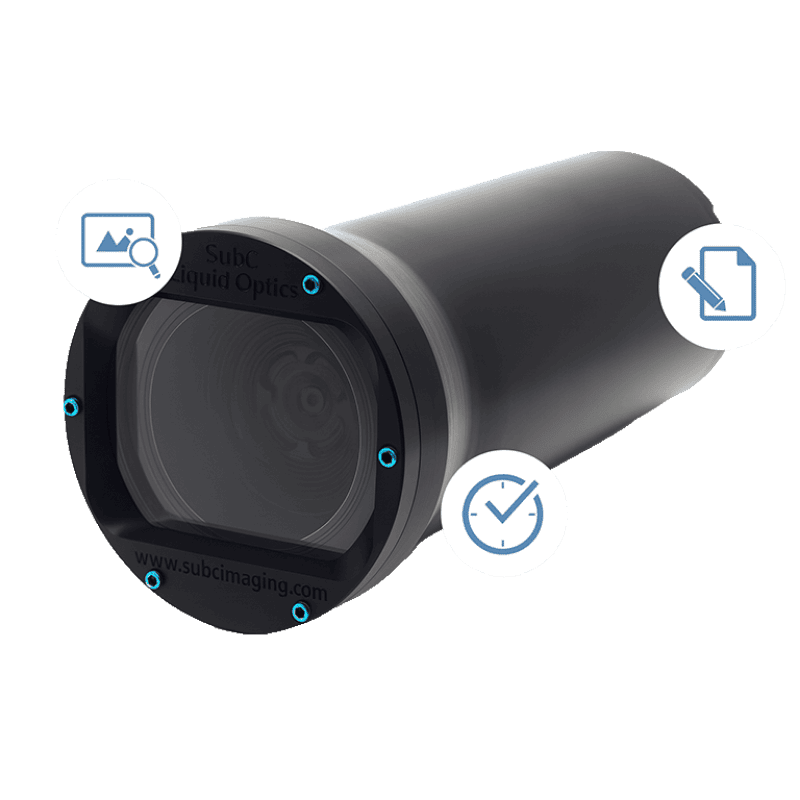

Live Video Image Enhancement
With a click of a button get clear visuals when visibility is compromised.
Automated Logging
Date, time, GPS, sensor data, and EXIF embedded for geo-referenced images.
Realtime Topsides
Transfer media & data instantly, no need for downloading.
Specs & Details
Specs
| Rayfin Micro | |||
|---|---|---|---|
| Sensor and Lens | Lens and Optics | Water-corrected, scratch-resistant sapphire LiquidOptics(TM) | |
| Angle of View (in water) | 81-degree diagonal with less than 3.4% distortion | ||
| Image Sensor | 12.3MP | 4056 x 3040 pixels | 12-bit CMOS | ||
| Zoom | Digital (5x Optical zoom equivalent) | ||
| Focus Range | 15cm to infinity | ||
| Data Formatting | Ethernet Video | RTSP H.264 - 1080p | 720p | 4K coming soon | |
| Rapid Digital Imaging (RDI) | Continuous Stills | Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds) | |
| Media Transfer | Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS. | ||
| Media Formats | Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV | ||
| Control | Over Ethernet with provided SubC software | Rayfin API is available for 3rd party integration | ||
| Data Logging | NMEA 0183 & 2000 format @ 10Hz | ||
| Clock Sources | NTP Server, Time from Data string | ||
| Electrical and Mechanical | Aux Ports | Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices | |
| Voltage and Maximum Power | 12 - 32.5 Vdc @ 12Watts | ||
| Protection | Short circuit | Under-over voltage | ESD | Over-temperature | ||
| Temperature (in water) | -20˚C to +30˚C | ||
| Depth Rating | 500m | ||
| Materials | Anodized 6061-T6 Aluminium, Delrin, Sapphire | ||
| Weight (in water) | 0.46 Kg | ||
| Dimensions | Ø 77.5 | 165mm x 64.5mm | ||

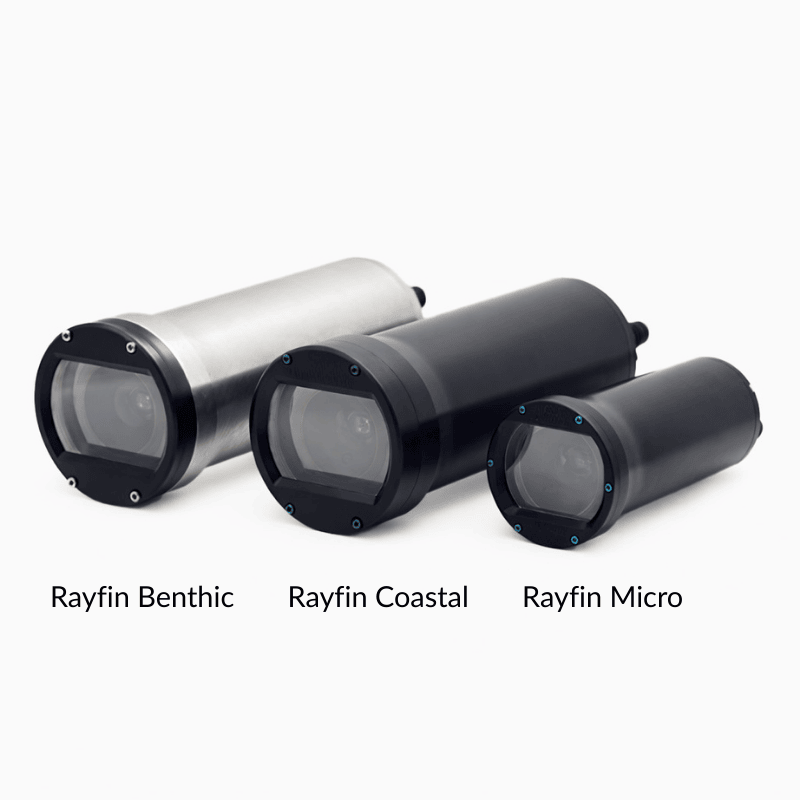

Camera Comparison Chart
| All Rayfin Models | ||||
|---|---|---|---|---|
| Lens and Optics | Water-corrected, scratch-resistant sapphire LiquidOptics(TM) | |||
| Angle of View (in water) | 81-degree diagonal with less than 3.4% distortion | |||
| Image Sensor | 12.3MP | 4056 x 3040 pixels | 12-bit CMOS | |||
| Zoom | Digital (5x Optical zoom equivalent) | |||
| Focus Range | 15cm to infinity | |||
| Ethernet Video | RTSP H.264 - 1080p | 720p | 4K coming soon | |||
| Rapid Digital Imaging (RDI) |
Continuous Stills | Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds) | ||
| Media Transfer | Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS. | |||
| Media Formats | Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV | |||
| Control | Over Ethernet with provided SubC software | Rayfin API is available for 3rd party integration | |||
| Data Logging | NMEA 0183 & 2000 format @ 10Hz | |||
| Clock Sources | NTP Server, Time from Data string | |||
| Temperature (in water) | -20˚C to +30˚C | |||
| Protection | Short circuit | Under-over voltage | ESD | Over-temperature | |||
| Aux Ports | Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices | |||
| Rayfin Micro | Rayfin Coastal | Rayfin Benthic | ||
| Application | Live inspections and surveys | Live inspections and surveys / Battery-powered systems / observatory / and more |
||
| Model Differentiators | Light weight, small size | SubC BPC technology for power and data over twisted pair or coax | Many options including video over HD-SDI or fiber optics and timelapse with low-power hibernation | |
| Internal Storage | 512GB: 10+ hours of 4K video, 40+ hours of HD video and thousands of photos. Optional 1TB upgrade | |||
| Built-in Sensors | Tilt, Roll, Depth and Temperature | Tilt and Roll. Optional Depth and Temperature |
||
| Depth Rating | 500m | 6000m | ||
| Materials | Anodized 6061-T6 Aluminium, Delrin, Sapphire | Grade 5 Titanium, Delrin, Sapphire | ||
| Voltage and Maximum Power | 12 - 32.5 Vdc @ 12Watts | 40 - 78 Vdc @ 18 Watts |
16.5 - 32.5 Vdc @ 13.5 Watts | |
| Weight (in water) | 0.46 Kg | 0.8 Kg | 1.6 Kg | |
| Dimensions | Ø 77.5 | 165mm x 64.5mm | Ø 101 | 241.5mm x 89mm | ||
| All SubC camera products include end-to-end support consisting of warranty, manuals, on-boarding, and technical support. | ||||
